The following is a direct adaptation of an example given in my own undergraduate notes - reproduced with permission. Thanks, Dougie.

Comparison of the Linear and Nonlinear Equations of Motion: Aircraft Simulation

The nonlinear equations of motion have been derived and will be repeated here:

\[\begin{split}m\begin{bmatrix} \dot{U} + QW - UR \\ \dot{V} + RU-PW\\\dot{W}+PV-QU\end{bmatrix}=\begin{matrix} -mg\sin\Theta - D\cos\alpha + L\sin\alpha + T\cos\Theta_T\\mg\sin\Phi\cos\Theta + F_{A_Y} + F_{T_Y}\\mg\cos\Phi\cos\Theta - D\sin\alpha - L\cos\alpha - T\sin\Theta_T\end{matrix}\end{split}\]

\[\begin{split}\left[{\begin{matrix} \dot{P}\cdot I_{xx} \\ \dot{Q}\cdot I_{yy} \\\dot{R}\cdot I_{zz}\end{matrix}} \hspace{.5cm} \begin{matrix} + \\+\\+\end{matrix} \hspace{.5cm} {\begin{matrix} Q\cdot r\left(I_{zz} - I_{yy}\right) \\ P\cdot R\left(I_{xx} - I_{yy}\right) \\ P\cdot Q\left(I_{yy} - I_{xx}\right)\end{matrix}} \hspace{.5cm} \begin{matrix} - \\+\\+\end{matrix} \hspace{.5cm} {\begin{matrix}\left(\dot{R} + P\cdot Q\right) I_{xz} \\ \left(P^2 - R^2\right) I_{xz} \\ \left(Q\cdot R - \dot{P}\right) I_{xz}\end{matrix}} \right] = \begin{bmatrix} L \\ M \\ N\end{bmatrix}\end{split}\]

\[\begin{split}\begin{aligned} \begin{bmatrix} P\\Q\\R\end{bmatrix} &= \begin{bmatrix} 1 & 0 & -\sin\Theta\\ 0 & \cos\Phi & \sin\Phi\cos\Theta\\ 0 & -\sin\Phi & \cos\Phi\cos\Theta \end{bmatrix}\begin{bmatrix} \dot{\Phi}\\\dot{\Theta}\\\dot{\Psi}\end{bmatrix}\end{aligned}\end{split}\]

\[\begin{split}\begin{aligned} \begin{bmatrix} \dot{\Phi}\\\dot{\Theta}\\\dot{\Psi}\end{bmatrix}&= \begin{bmatrix} 1 & \sin\Phi\tan\Theta & \cos\Phi\tan\Theta\\ 0 & \cos\Phi & -\sin\Phi \\ 0 & \frac{\sin\Phi}{\cos\Theta} & \frac{\cos\Phi}{\cos\Theta} \end{bmatrix}\begin{bmatrix} P\\Q\\R\end{bmatrix}\end{aligned}\end{split}\]

a simulation of this aircraft in the longitudinal plane will be presented in this section. By constraining to longitudinal motion only, the solution of the nonlinear equations is heavily simplified, but the analysis can be expanded for the unconstrained case and if we assume the thrust inclination is zero. The simplifying assumption is:

\[V=P=R=\Phi=\Psi=\Theta_0 = 0\]

and the equations describing longitudinal flight may now be we written:

\[\begin{split}\begin{aligned} m\left(\dot{U} + Q\,W\right) &= T - D\cos\alpha + L\cos\alpha - mg\,\sin\Theta\\ m\left(\dot{W} - Q\,U\right) &= -L\cos\alpha - D\sin\alpha+ mg\,\cos\Theta\\ I_{yy}\,\dot{Q} &= M_A - T\,\Delta_{zT}\\ \dot{\Theta}&=Q\end{aligned}\end{split}\]

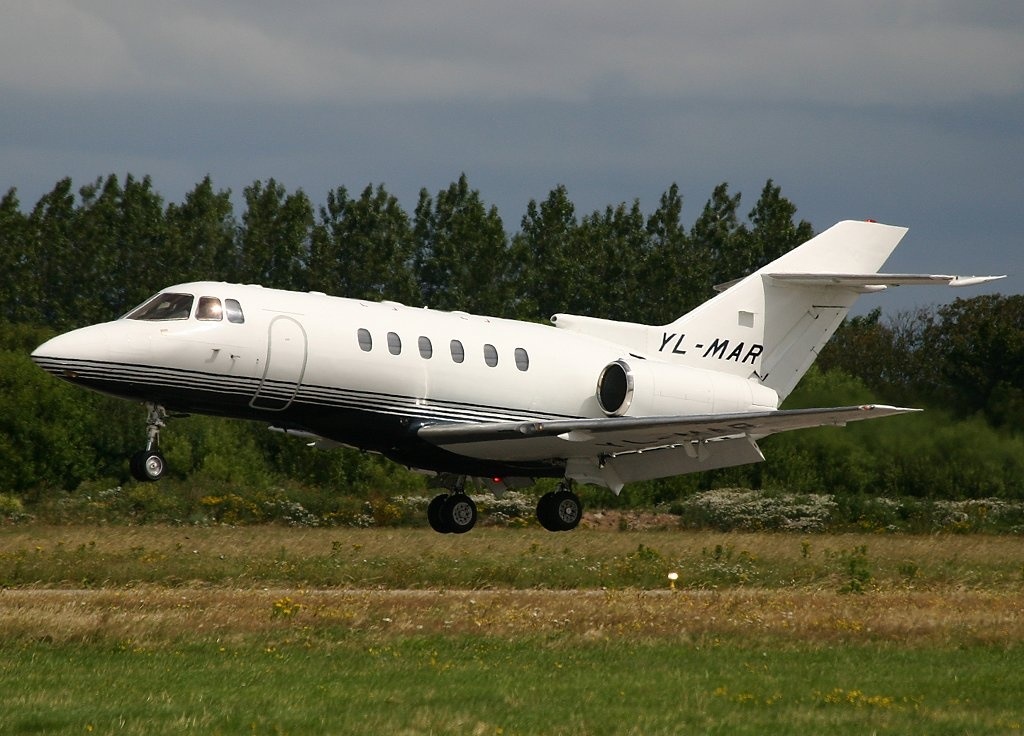

HS125 (Hawker 800) Business Jet)

The data for the HS125 Business jet are given in the table below. The aerodynamic model gives the lift, drag, and pitching moment coefficients as:

\[\begin{split}\begin{aligned} C_L &= C_{L_0} + C_{L_\alpha}\,\alpha + C_{L_{\delta_e}}\,\delta_e\\ C_D &= C_{D_0} + C_{D_\alpha}\,\alpha + C_{D_{\alpha^2}}\,\alpha^2\\ C_M &= C_{M_0} + C_{M_\alpha}\,\alpha + C_{M_{\delta_e}}\,\delta_e + C_{M_q}\,\hat{q}\\ \hat{q}&\triangleq \frac{Q\,\bar{c}}{V_f}\end{aligned}\end{split}\]

Parameter	Symbol	Value
Mass	\(m\)	7500kg
Wing Area	\(S\)	32.8\(\text{m}^2\)
Pitching Moment of Inertia	\(I_{yy}\)	84,309\(\text{kg m}^2\)
MAC	\(\bar{c}\)	2.29m
Thrustline vertical displacement	\(\Delta_{zT}\)	-0.378m
Lift Coefficients	\(C_{L_0},\, C_{L_\alpha},\, C_{L_{\delta_e}}\)	0.895, 5.01, 0.722
Drag Coefficients	\(C_{D_0},\, C_{D_\alpha},\, C_{D_{\alpha^2}}\)	0.177, 0.232, 1.393
PM Coefficients	\(C_{M_0},\, C_{M_\alpha},\, C_{M_{\alpha^2},\, C_{M_q}}\)	-0.046, -1.087, -1.88, -7.055

The reduced nonlinear equations of motion can be constructed into a function eqnofmotion800:

def eqnofmotion800(y, t=[], Thrust=13878):
    # The reduced state vector is a 7 x 1 vector
    # y = [U, W, Q, Theta, X_E, Z_E, dE]


    # Aircraft Parameters (all in SI)
    m=7484.4 # mass  = 7484.4kg  etc.
    s=32.8 #
    Iyy=84309
    cbar=2.29
    dZt=-0.378
    rho=1.225
    CD0=0.177
    CDa=0.232
    CDa2= 1.393
    CL0=0.895
    CLa=5.01
    CLde=0.722
    CM0=-0.046
    CMa=-1.087
    CMde=-1.88
    CMq=-7.055


    # Get the current values of aircraft states
    dE = y[6] # Elevator input

    U=y[0] # Forward speed
    W=y[1] # Heave velocity
    Q=y[2] # Pitch rate
    Theta=y[3] # Pitch attitude

    # Determine some aerodynamic terms
    Vf=np.sqrt(U**2 + W**2) # Flight speed
    alpha = np.arctan(W/U) # Angle of attack
    qh = Q*cbar/Vf # Nondimensional pitch rate

    # Aerodynamic coefficients from Hawker model:
    CL = CL0 + CLa*alpha + CLde*dE
    CD = CD0 + CDa*alpha + CDa2*alpha*alpha
    CM = CM0 + CMa*alpha + CMde * dE + CMq*qh

    q_inf = .5*rho*Vf**2*s

    # Dimensional aero terms
    lift = q_inf*CL
    drag = q_inf*CD
    pm = q_inf*cbar*CM

    # Simplified nonlinear equations of motion
    ydot = np.zeros(7, dtype='float64')
    ydot[0] = -Q*W + (lift*np.sin(alpha) - drag*np.cos(alpha) + Thrust)/m - 9.80665*np.sin(Theta) # Udot
    ydot[1] = Q*U + (-lift*np.cos(alpha) - drag*np.sin(alpha))/m + 9.80665*np.cos(Theta) # Wdot
    ydot[2] = (pm - Thrust*dZt)/Iyy # M
    ydot[3] = Q # ThetaDot
    ydot[4] = U*np.cos(Theta) - W*np.sin(Theta) # X_Edot (earth axes)
    ydot[5] = U*np.sin(Theta) + W*np.cos(Theta) # Z_Edot (earth axes)
    ydot[6] = 0 # No change to elevator

    return ydot

To determine the transient aircraft response, first the trim state must be determined.

Trim State Determination

By definition, the trim case is found by setting the accelerations and angular velocities to zero. Hence the equations of motion become:

\[\begin{split}\begin{aligned} 0 &= T - D\cos\alpha + L\cos\alpha - mg\,\sin\Theta\\ 0 &= -L\cos\alpha - D\sin\alpha+ mg\,\cos\Theta\\ 0 &= M_A - T\Delta_{zT}\end{aligned}\end{split}\]

The knowns in the above are flightspeed, \(V_f\), density (from altitude), \(\rho\), and climb angle/flight path angle \(\gamma\) (setting \(U_E\) and \(W_E\)). These may be solved via any means you like to get the reference trim state. An example of a Newton-Raphson solver[4] is included below as TrimState which finds trim using TotalForces:

from ambiance import Atmosphere
import numpy as np

def TotalForces(T, de, Theta, Vf, h, gamma):
    '''This gives the total forces for the HS 125 simplified longitudinal
    aircraft
    Inputs: Thrust/N, elevator deflection/deg, theta/rad, flightspeed/m/s,
    flightpath/rad
    altitude/m
    '''


    # Aircraft Parameters (all in SI)
    m=7484.4 # mass  = 7484.4kg  etc.
    s=32.8 #
    Iyy=84309
    cbar=2.29
    dZt=-0.378
    rho=1.225
    CD0=0.177
    CDa=0.232
    CDa2= 1.393
    CL0=0.895
    CLa=5.01
    CLde=0.722
    CM0=-0.046
    CMa=-1.087
    CMde=-1.88
    CMq=-7.055
    Thrust=13878
    g = 9.80665

    qh = 0  # Trim definition

    rho = Atmosphere(h).density

    # Get the Ue and Ve
    alpha = Theta - gamma
    CL = CL0 + CLa*alpha + CLde*de
    CD = CD0 + CDa*alpha + CDa2*alpha*alpha
    CM = CM0 + CMa*alpha + CMde * de + CMq*qh

    q_infs = .5*rho*Vf**2*s

    # Dimensional lift
    lift = q_infs*CL
    drag = q_infs*CD
    pm = q_infs*cbar*CM


    # Determine lift and drag
    F = np.zeros((3, 1))

    F[0] = T - drag*np.cos(alpha) + lift*np.sin(alpha) - m*g*np.sin(Theta)
    F[1] = -lift*np.cos(alpha) -drag*np.sin(alpha) + m*g*np.cos(Theta)
    F[2] = pm - T*dZt
    return F

def TrimState(Vf = 120 * 0.5144444, h = 0, gamma = 0):
    '''This function solves for the longitudinal trim of the HS125 using a Newton-Raphson method'''



    # First guess and increments for the jacobian <---- may need to adjust these
    T = 15000
    dT = 1
    de = 0*np.pi/180
    dde = .01*np.pi/180
    Theta = 2*np.pi/180
    dTheta = dde;

    # Gets the value of the functions at the initial guess
    trim = TotalForces(T, de, Theta, Vf, h, gamma);

    Trimstate = np.array([[T], [de], [Theta]])

    itercount = 0
    while max(abs(trim)) > 1e-5:
        itercount = itercount + 1
        # Get value of the function
        trim = TotalForces(T, de, Theta, Vf, h, gamma);


        # Get the Jacobian approximation (3 x 3)
        JT = np.squeeze(TotalForces(T + dT, de, Theta, Vf, h, gamma)/dT)
        Jde = np.squeeze(TotalForces(T, de + dde, Theta, Vf, h, gamma)/dde)
        JTheta = np.squeeze(TotalForces(T, de, Theta + dTheta, Vf, h, gamma)/dTheta)
        Jac = np.transpose(np.array([JT, Jde, JTheta]))

        # Get the next iteration
        Trimstate = Trimstate - np.dot(np.linalg.inv(Jac), trim)


        T = Trimstate[0]
        de = Trimstate[1]
        Theta = Trimstate[2]

    print(f"Converged after {itercount} iterations")
    print(f'For inputs of Vf = {Vf:1.2f}m/s, h = {h/1e3:1.2f}km, gamma = {gamma:1.2f}deg\n')
    print(f'Thrust = {T[0]/1e3:1.2f}kN, de = {np.degrees(de[0]):1.2f}deg, Theta = {np.degrees(Theta[0]):1.2f}deg\n')

    return Trimstate

TrimState();

Converged after 1390 iterations
For inputs of Vf = 61.73m/s, h = 0.00km, gamma = 0.00deg

Thrust = 13.84kN, de = -0.98deg, Theta = 0.84deg

For a trim input of sea-level and 120kn, the trim is found to be - \(T = 13.84\)kN, \(\delta_e = -0.98^\circ\), \(\Theta = 0.84^\circ\). A quick sense check shows that the aircraft is slightly nose up (less than a degree) so the aerodynamic pitching moment from the wing/fuselage will be nose-up, and the elevator is deflected trailing edge up to balance the pitching moment.

Transient Simulation

For level flight (trim), the initial conditions are given from from the previous step - if the aircraft remains undisturbed, then there will be no variation in any of the parameters. The nonlinear equations cannot be solved analytically, so if the aircraft response to control inputs is desired, then a numerical scheme must be used.

The case of a positive elevator deflection corresponding to a stick-forward displacement will be explored. First, the response to a \(\delta_e^\prime=1^\circ\) will be explored - this is equivalent to the pilot pushing the stick forward and holding it, keeping other controls constant.

The equations are solved numerically using scipy’s odeint (which is very similar to ODE45 in MATLAB)

# Set the inputs
de = -1
de = np.radians(de)
h = 0
Vf = 120*.51444
gamma = 0

# Determine the trim state
trimstate = TrimState(Vf, h, gamma)
alpha = trimstate[2] - gamma
Ue = Vf*np.cos(alpha)
We = Vf*np.sin(alpha)
Qe = 0
ThetaE = trimstate[2]
Xe = 0
Ze = h;

# Initial conditions
from scipy.integrate import odeint
y0 = np.array([Ue[0], We[0], Qe, ThetaE[0], Xe, Ze, (de + trimstate[1])[0]])

t = np.linspace(0, 100, 1000)
output = odeint(eqnofmotion800, y0, t, args=(trimstate[0],))

U = output[:, 0]
W = output[:, 1]
Q = output[:, 2]
Theta = output[:, 3]
Alt = output[:, 5]
alpha = np.arctan2(W, U)
FS = np.sqrt(U**2 + W**2)

# Plot 'em
from plotly.subplots import make_subplots
import plotly.graph_objects as go

fig = make_subplots(rows=3, cols=2, subplot_titles=("Forward Speed", "Heave Velocity", "Pitch Rate", "Pitch Attitude", "Altitude", "AoA"))

fig.add_trace(
    go.Scatter(x = t, y = U, showlegend=False), row=1, col=1)

fig.add_trace(
    go.Scatter(x = t, y = W, showlegend=False), row=1, col=2)

fig.add_trace(
    go.Scatter(x = t, y = Q, showlegend=False), row=2, col=1)

fig.add_trace(
    go.Scatter(x = t, y = Theta, showlegend=False), row=2, col=2)

fig.add_trace(
    go.Scatter(x = output[:, 4], y = Alt, showlegend=False), row=3, col=1)

fig.add_trace(
    go.Scatter(x = t, y = alpha, showlegend=False), row=3, col=2)


# Store these data for later
tNonlinear = t
Unonlinear = U
Wnonlinear = W
Qnonlinear = Q
Thetanonlinear = Theta


fig.update_xaxes(title_text="Time", row=1, col=1)
fig.update_yaxes(title_text=f"U / (m/s)", row=1, col=1)
fig.update_xaxes(title_text="Time", row=1, col=2)
fig.update_yaxes(title_text=f"W / (m/s)", row=1, col=2)
fig.update_xaxes(title_text="Time", row=2, col=1)
fig.update_yaxes(title_text="Q / (deg/s)", row=2, col=1)
fig.update_xaxes(title_text="Time", row=2, col=2)
fig.update_yaxes(title_text="θ / deg", row=2, col=2)
fig.update_xaxes(title_text="Horizontal Distance", row=3, col=1)
fig.update_yaxes(title_text="Alt / m", row=3, col=1)
fig.update_xaxes(title_text="Time", row=3, col=2)
fig.update_yaxes(title_text="AoA / deg", row=3, col=2)

Converged after 1390 iterations
For inputs of Vf = 61.73m/s, h = 0.00km, gamma = 0.00deg

Thrust = 13.84kN, de = -0.98deg, Theta = 0.84deg

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/3665881265.py:52: DeprecationWarning: Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)
  ydot[0] = -Q*W + (lift*np.sin(alpha) - drag*np.cos(alpha) + Thrust)/m - 9.80665*np.sin(Theta) # Udot
/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/3665881265.py:54: DeprecationWarning: Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)
  ydot[2] = (pm - Thrust*dZt)/Iyy # M

It should be noted that the values above are total values and NOT perturbational values. We can compare a linear model of the HS125 with the reduced nonlinear model, above - but rather than sourcing HS 125 data of unknown legacy, it makes more sense (but more work) to use the HS125 model to produce numerical derivatives based upon small perturbation theory using the model itself.

\[\newcommand{\pd}[2]{\frac{\partial#1}{\partial#2}}\]

\[\newcommand{\ppd}[2]{\frac{\partial^2#1}{\partial#2^2}}\]

\[\newcommand{\pppd}[2]{\frac{\partial^3#1}{\partial#2^3}}\]

Numerical Linearisation of the Equations of Motion

This section shall stick with the HS 125 business jet. For the longitudinal equations of motion:

\[\begin{split}\begin{aligned} \begin{bmatrix} \dot{u}\\\dot{w}\\\dot{q}\\\dot{\theta}\end{bmatrix} &= \begin{bmatrix} X_u & X_w & 0 & -g\cdot\cos\theta_0\\ Z_u & Z_w & U_0 & -g\cdot\sin\theta_0\\ M_u^* & M_w^* & M_q^* & M_\theta^*\\ 0 & 0 & 1 & 0 \end{bmatrix}\begin{bmatrix} {u}\\{w}\\{q}\\{\theta^\prime} \end{bmatrix} + \begin{bmatrix} 0\\Z_{\delta_0}\\M_{\delta_0}^*\\0 \end{bmatrix}\left[\delta_0\right]\\ \dot{\vec{x}} &= \hspace{2cm} A\vec{x} + B\vec{u} \end{aligned}\end{split}\]

\[\begin{split}\begin{aligned} M_u^*&\triangleq M_u + M_{\dot{w}}Z_u\,\,\,\,\,\,\,\,M_w^*\triangleq M_w+M_{\dot{w}}Z_w\,\,\,\,\,\,\,\,M_q^*\triangleq M_q+M_{\dot{w}}U_0\nonumber\\ M_{\delta_0}^*&\triangleq M_{\delta_0}+M_{\dot{w}}Z_{\delta_0}\,\,\,\,\,\,\,\,M_{\theta}^*\triangleq-M_{\dot{w}}g\sin\theta_0 \nonumber \end{aligned}\end{split}\]

For each of the derivatives contained above, a central-difference approach may be utilised. That is, if the longitudinal force is a function of the aircraft states:

\[X = f\left(U, W, Q,\Theta_0,\delta_{e_0}\right)\]

then each of the stability derivatives may be expressed as a numerical partial derivative. For example

\[X_u = \frac{1}{m}\left.\pd{X}{u}\right|_0=\frac{1}{m}\left[\frac{f\left(U_0+\delta U,W_0,Q_0,\theta_0,\delta_{e_0}\right)-f\left(U_0- \delta U,W_0,Q_0,\theta_0,\delta_{e_0}\right)}{2\delta U}\right]\]

Note that the variable that the derivative is with respect to is altered, and the others are held constant - this is a partial derivative. This can be repeated for the remaining derivatives. This procedure has been used below to create stability derivatives.

TotalForces gives values of the \(X\), \(Z\), and \(M\) force and moments, and then NumerialDerivatives uses a central difference approach with TotalForces to create the numerical derivatives about this trim state

def perturbationalForces(U, W, Q, Theta, de, h, gamma, T):
    '''This gives the total forces for the HS 125 simplified longitudinal
    aircraft
    Inputs: Thrust/N, elevator deflection/deg, theta/rad, flightspeed/m/s,
    flightpath/rad
    altitude/m
    '''


    # Aircraft Parameters (all in SI)
    m=7484.4 # mass  = 7484.4kg  etc.
    s=32.8 #
    Iyy=84309
    cbar=2.29
    dZt=-0.378
    rho=1.225
    CD0=0.177
    CDa=0.232
    CDa2= 1.393
    CL0=0.895
    CLa=5.01
    CLde=0.722
    CM0=-0.046
    CMa=-1.087
    CMde=-1.88
    CMq=-7.055
    Thrust=13878
    g = 9.80665

    qh = 0  # Trim definition

    rho = float(Atmosphere(h).density[0])

    # Get the Ue and We and add the perturbational values
    alpha = np.arctan2(W, U)
    Vf = np.sqrt(U ** 2 + W **2)
    Qhat = Q * cbar / Vf

    # Recalculate alpha
    CL = CL0 + CLa*alpha + CLde*de
    CD = CD0 + CDa*alpha + CDa2*alpha*alpha
    CM = CM0 + CMa*alpha + CMde * (de) + CMq*(Qhat)

    q_infs = .5*rho*Vf**2*s

    # Dimensional lift
    lift = q_infs*CL
    drag = q_infs*CD
    pm = q_infs*cbar*CM


    # Determine lift and drag
    F = np.zeros((3, 1))


    F[0] = float(T - drag*np.cos(alpha) + lift*np.sin(alpha) - m*g*np.sin(Theta))
    F[1] = float(-lift*np.cos(alpha) -drag*np.sin(alpha) + m*g*np.cos(Theta))
    F[2] = float(pm - T*dZt)
    return F

def numericalDerivatives(Vf=120 * .514444, h = 0, de = np.radians(1), gamma=0):
    """
    This approach uses a central difference small perturbation approach to estimate the numerical
    value of the stability derivatives
    """
    trimstate = TrimState(Vf, h, gamma)
    T = trimstate[0]
    de = trimstate[1]
    alpha = trimstate[2] - gamma
    Ue = Vf * np.cos(alpha)
    We = Vf * np.sin(alpha)
    Qe = 0
    ThetaE = trimstate[2]
    Xe = 0
    Ze = h

    # Determine numerical derivatives
    m=7484.4 #%mass  = 7484.4kg  etc.
    Iyy=84309
    g = 9.80665
    # Get Xu
    dUe = 2 #Vf * 0.01
    dWe = 2 #Vf * 0.01
    dQe = 0.1
    dde = de * 0.01

    # Derivatives wrt u
    Xpde, Zpde, Mpde = perturbationalForces(Ue+dUe, We, Qe, ThetaE, de, h, gamma, T)
    Xmde, Zmde, Mmde = perturbationalForces(Ue-dUe, We, Qe, ThetaE, de, h, gamma, T)

    Xu = 1 / m *(Xpde - Xmde) /2 /dUe
    Zu = 1 / m*(Zpde - Zmde) /2 /dUe
    Mu = 1 / Iyy *(Mpde - Mmde) /2 /dUe

    # Derivatives wrt w
    [Xpdw, Zpdw, Mpdw] = perturbationalForces(Ue, We+dWe, Qe, ThetaE, de, h, gamma, T)
    [Xmdw, Zmdw, Mmdw] = perturbationalForces(Ue, We-dWe, Qe, ThetaE, de, h, gamma, T)
    Xw = 1 /m*(Xpdw - Xmdw) /2 /dWe
    Zw = 1 /m*(Zpdw - Zmdw) /2 /dWe;
    Mw = 1 /Iyy*(Mpdw - Mmdw) /2 /dWe;

    # Derivatives wrt q
    [Xpdq, Zpdq, Mpdq] = perturbationalForces(Ue, We, Qe+dQe, ThetaE, de, h, gamma, T)
    [Xmdq, Zmdq, Mmdq] = perturbationalForces(Ue, We, Qe-dQe, ThetaE, de, h, gamma, T)
    Xq = 1 / m *(Xpdq - Xmdq) /2 /dQe;
    Zq = 1 / m *(Zpdq - Zmdq) /2 /dQe;
    Mq = 1 / Iyy *(Mpdq - Mmdq) /2 /dQe;

    # Derivatives wrt elevator
    [_, Zpde, Mpde] = perturbationalForces(Ue, We, Qe, ThetaE, de+dde, h, gamma, T)
    [_, Zmde, Mmde] = perturbationalForces(Ue, We, Qe, ThetaE, de-dde, h, gamma, T)
    Zde = 1 / m *(Zpde - Zmde) /2 /dde;
    Mde = 1 / Iyy *(Mpde - Mmde) /2 /dde;

    # Put them into an A matrix
    A = np.matrix(
        [
            [float(Xu), float(Xw), 0, -float(g*np.cos(ThetaE))],
            [float(Zu), float(Zw), float(Ue), -float(g*np.sin(ThetaE))],
            [float(Mu), float(Mw), float(Mq), 0],
            [0, 0, 1, 0]
        ]
    )


    print(f"At this trim state, the approximation of the A matrix is:")
    print(A)

    print('Control matrix approximation:')
    B = np.matrix(
        [
            [0], [float(Zde)], [float(Mde)], [0]
        ]
    )
    print(B)
    return A, B

Alon, Blon = numericalDerivatives()

Converged after 1390 iterations
For inputs of Vf = 61.73m/s, h = 0.00km, gamma = 0.00deg

Thrust = 13.84kN, de = -0.98deg, Theta = 0.84deg

At this trim state, the approximation of the A matrix is:
[[-5.70764610e-02  1.25051144e-01  0.00000000e+00 -9.80559977e+00]
 [-3.05079979e-01 -8.63347157e-01  6.17266688e+01 -1.43517817e-01]
 [-1.47362059e-03 -3.66687419e-02 -5.44243612e-01  0.00000000e+00]
 [ 0.00000000e+00  0.00000000e+00  1.00000000e+00  0.00000000e+00]]
Control matrix approximation:
[[ 0.        ]
 [-7.38503134]
 [-3.90965145]
 [ 0.        ]]

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:56: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:57: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:58: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:118: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:119: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:120: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

/var/folders/4w/4bcfp26j6_1gn39czlk991z80000gn/T/ipykernel_85599/216876043.py:132: DeprecationWarning:

Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)

With the system and control matrix above, the response of the aircraft to the same input disturbance may be evaluated.

import control
import control.matlab

# We will make a B matrix to enable us to use the control system toolbox by _exciting the aircraft_ through
# Elevator input. Turn from Zde in 1/radians to 1/degree to put a useful input in.
SIunits=True

# Turn the matrices into a state space object
LonSS = control.StateSpace(Alon, Blon, np.eye(Alon.shape[0]), np.zeros(Blon.shape))

# Look at the first 100 seconds response to a unit impulse in the only
timeVec = np.linspace(0, 100, 1000)
Time, [u, w, q, theta] = control.forced_response(LonSS, U=de * np.ones(timeVec.shape), T=timeVec)

# u, w, q, theta = u[0], w[0], q[0], theta[0]

# Add back on the trim values


# Convert q and theta
q = np.degrees(q)
theta = np.degrees(theta)

from plotly.subplots import make_subplots
import plotly.graph_objects as go

fig = make_subplots(rows=2, cols=2, subplot_titles=("Forward Speed", "Heave Velocity", "Pitch Rate", "Pitch Attitude"))

fig.add_trace(
    go.Scatter(x = Time, y = u + Ue, showlegend=True, name="Linear", line_color="blue"), row=1, col=1)

# tNonlinear = t
# Unonlinear = U
# Wnonlinear = W
# Qnonlinear = Q
# Thetanonlinear = Theta

fig.add_trace(
    go.Scatter(x = tNonlinear, y = Unonlinear, line_color="blue", showlegend=True, line={"dash":"dash"}, name="Nonlinear"), row=1, col=1)

fig.add_trace(
    go.Scatter(x = Time, y = w+We, showlegend=False, line_color="blue"), row=1, col=2)

fig.add_trace(
    go.Scatter(x = tNonlinear, y = Wnonlinear, showlegend=False, line_color="blue", line={"dash":"dash"}, name="Nonlinear"), row=1, col=2)

fig.add_trace(
    go.Scatter(x = Time, y = (q), showlegend=False, line_color="blue"), row=2, col=1)

fig.add_trace(
    go.Scatter(x = Time, y = np.degrees(Qnonlinear), showlegend=False, line_color="blue", line={"dash":"dash"}), row=2, col=1)

fig.add_trace(
    go.Scatter(x = Time, y = (theta), showlegend=False, line_color="blue"), row=2, col=2)

fig.add_trace(
    go.Scatter(x = Time, y = np.degrees(Thetanonlinear), showlegend=False, line_color="blue", line={"dash":"dash"}), row=2, col=2)

# Make a label based upon the units
if SIunits:
    speedlabel = "m/s"
else:
    speedlabel = "ft/s"

fig.update_xaxes(title_text="Time", row=1, col=1)
fig.update_yaxes(title_text=f"U / ({speedlabel})", row=1, col=1)
fig.update_xaxes(title_text="Time", row=1, col=2)
fig.update_yaxes(title_text=f"W / ({speedlabel})", row=1, col=2)
fig.update_xaxes(title_text="Time", row=2, col=1)
fig.update_yaxes(title_text="Q / (deg/s)", row=2, col=1)
fig.update_xaxes(title_text="Time", row=2, col=2)
fig.update_yaxes(title_text="θ / deg", row=2, col=2)

fig.update_layout(title_text=f"Comparison of linear and nonlinear models - response to {np.degrees(de):1.0f}° constant elevator input",
                 title_x=0.5)


fig.show()



fig.write_html("LinearvsNonLinearExample.html")

The linear model matches the response pretty well - with differences only really occuring after significant time has passed.

It is clear that the aircraft response in pitch is a couple of two characteristic motions - one highly-damped with a short period, and one with a much longer period. These are the short period and Phugoid motions, respectively. They will be discussed in further detail in the following chapter, but for the present discussion it can be seen that the linear model initially correlates very well with the nonlinear model, but that it slowly begins to drift apart. This is to be expected from any linear model - particularly as the model diverges away from the trim point at which the stability derivatives were evaluated.

From an analysis standpoint, it is difficult to de-couple the motion in the first few seconds - the motion from 0-5s comprises the superposition of short-period and Phugoid mode. Whilst the Phugoid motion can be removed from the plot numerically, this requires determination of the final value.

This highlights a chief benefit of the linear equation of motion - as will be explored in the next Chapter, system stability information (\(\omega_n\), \(\zeta\)) can be determined directly from the system matrix - with no need for transient analysis.

---

[4]

You will not be tested on things like this in an examination in this course, but it’s really in your interest to ensure that you can a) understand how this solver works and b) be confident you could write something that does the same job yourself.
